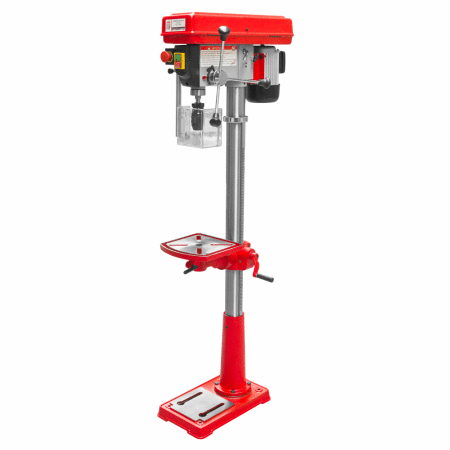

SIP F32-ID Vari-Speed 2.2kW Floor Pillar Drill 01720

Description KEY FEATURES Variable frequency inverter drive transmission with wide 65-2000rpm speed range Infinitely variable control dial for precise spindle speed setting High torque output for consistent drilling power of up to max. ⌀ 32mm Fitted with heavy-duty drill chuck and compatible with MT3 (Morse Taper 3) Tapping function for threading high-quality screw holes up to max. ⌀ 19mm Recirculating coolant system maintains optimal drilling conditions Technical Information ITEM NO. 01720 Input Supply: 400v (16A) Motor Power: 2.2kW No. of Speeds: 65rpm – 540rpm (low) / 245rpm – 2000rpm (high) Max. Drilling Capacity: 32mm Max. Tapping Capacity: 19mm Spindle Taper: MT3 Table Size: 560mm x 475mm Base Size: 688mm x 486mm Column Diameter ⌀ 115mm Swing: 530mm Height: 1665mm Spindle Travel: 150mm Collar Diameter: ⌀ 174mm Max. Distance: 530mm (spindle to table) / 1180mm (spindle to base) Net Weight: 380kg Gross Weight: 455kg Product Dimensions: 1665(H) x 650(W) x 1090mm(D) Packaged Dimensions: 1000(H) x 800(W) x 1900mm(D)
